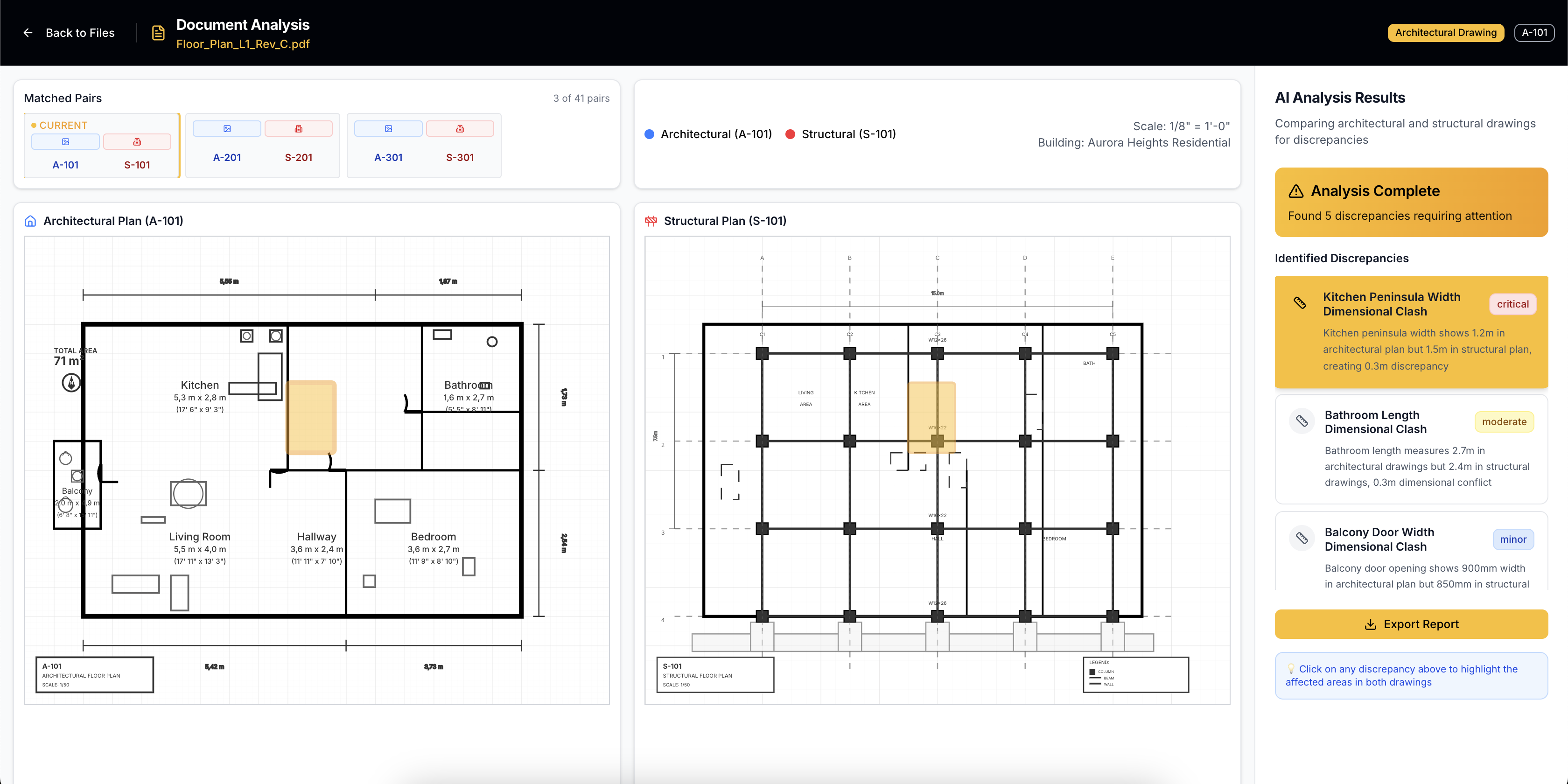

SiteSync AI Dashboard - Construction Plan Analysis Interface
Interactive Demo
Click on discrepancies to see them highlighted
Get Started

Document Analysis

Floor_Plan_L1_Rev_C.pdf

Architectural Drawing
A-101

Matched Pairs

3 of 41 pairs
CURRENT
A-101 / S-101
A-201 / S-201
A-301 / S-301
Architectural (A-101)
Structural (S-101)
Scale: 1/8" = 1'-0"Building: Aurora Heights Residential
Architectural Plan (A-101)
Architectural Floor Plan
A-101 ARCHITECTURAL FLOOR PLAN SCALE: 1/50
Structural Plan (S-101)
Structural Floor Plan
S-101 STRUCTURAL FLOOR PLAN SCALE: 1/50

AI Analysis Results

Comparing architectural and structural drawings for discrepancies

Analysis CompleteFound 5 discrepancies requiring attention
Scale: 1/8" = 1'-0"Building: Aurora Heights Residential
1
Critical
1
Moderate
1
Minor

Kitchen Peninsula Width Dimensional Clash

Kitchen peninsula width shows 1.2m in architectural plan but 1.5m in structural plan, creating 0.3m discrepancy.

Kitchen Area

Bathroom Length Dimensional Clash

Bathroom length measures 2.7m in architectural drawings but 2.4m in structural drawings, 0.3m dimensional conflict.

Bathroom Area

Balcony Door Width Dimensional Clash

Balcony door opening shows 900mm width in architectural plan but 850mm in structural.

Balcony Area
Click on any discrepancy above to highlight the affected areas in both drawings.
✨ Powerful Features
Everything you need to streamline construction plan analysisOur AI-powered platform combines cutting-edge technology with industry expertise to deliver the most comprehensive plan analysis solution available.
Core Feature
AI-Powered Analysis
Advanced machine learning algorithms detect discrepancies with 99.9% accuracy across architectural, structural, and MEP drawings.
Performance
Lightning Fast Processing
Analyze hundreds of pages in minutes, not hours. Our optimized algorithms deliver results 10x faster than manual review.
Detection

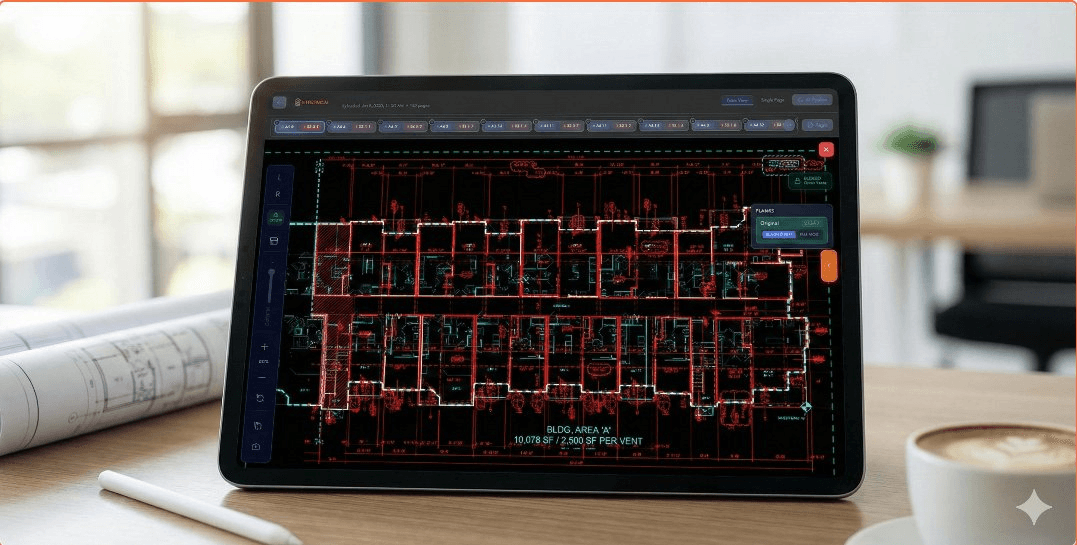

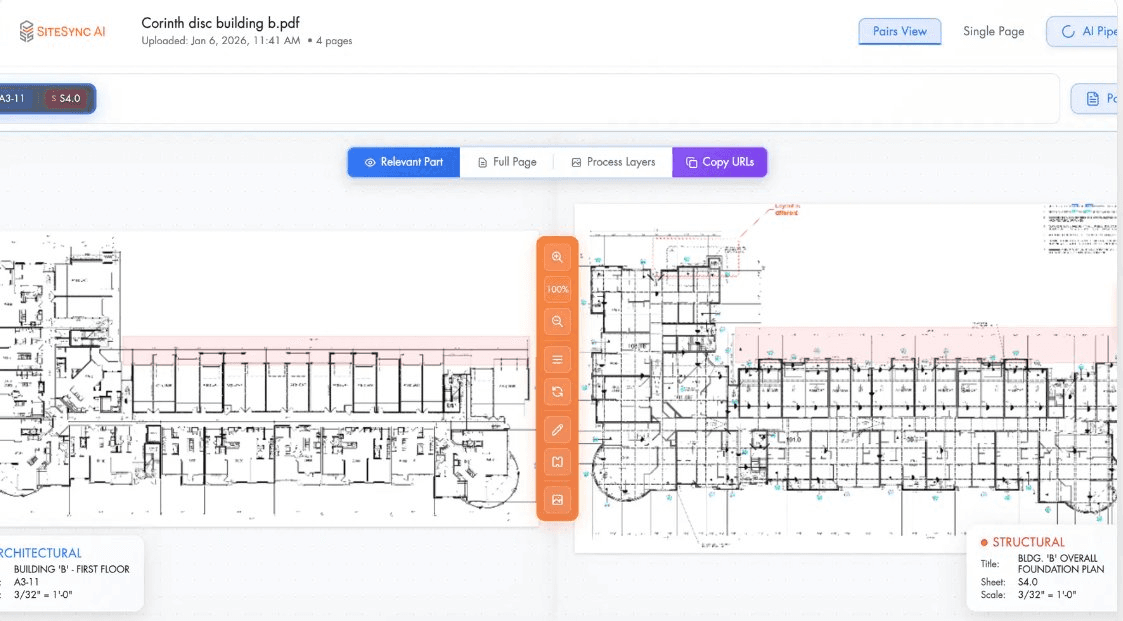

Smart Issue Detection
Identify dimension mismatches, material conflicts, code violations, and design inconsistencies automatically.
Compatibility
Multi-Format Support
Works with PDF, DWG, DXF, and major CAD formats. No conversion needed - upload and analyze instantly.
Reporting
Detailed Reporting

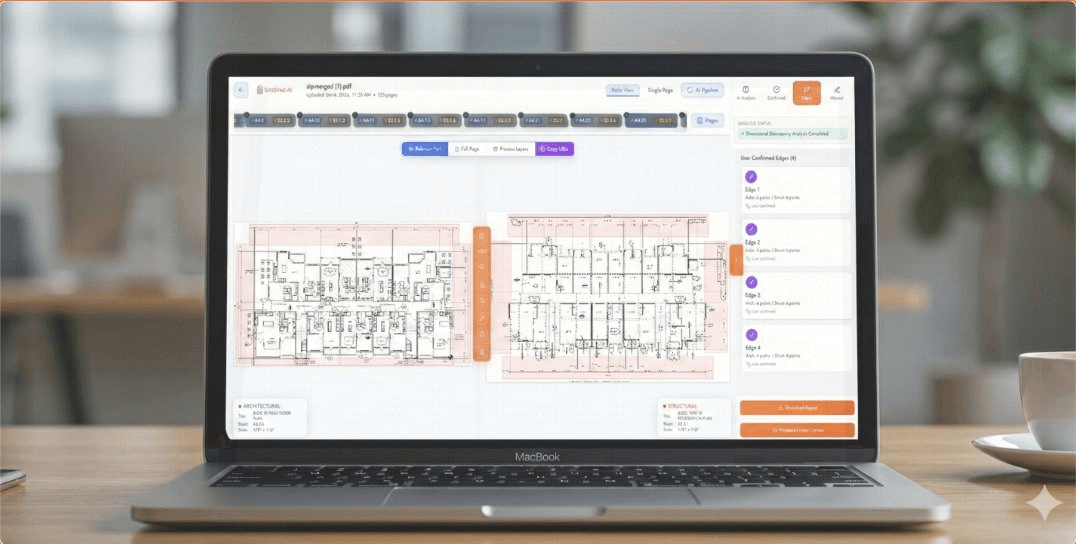

Generate comprehensive reports with visual annotations, priority rankings, and actionable recommendations.
Security
Enterprise Security
Bank-level encryption, SOC 2 compliance, and secure cloud infrastructure protect your sensitive project data.

Frequently Asked Questions

Everything you need to know about SiteSync AI and how it can transform your construction workflow

SiteSync AI is trained on thousands of real blueprints and provides confidence scores with each result. You can easily verify every flagged discrepancy.

No. SiteSync AI enhances your workflow by automating error checks while keeping your team in full control.

We work with PDFs, CAD files, and most common blueprint formats.

It's purpose-built for construction, combining AI with domain expertise for higher accuracy.

Customers typically reduce rework costs by 10–15% per project.
